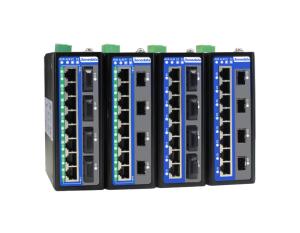

12 Port Unmanaged PoE IES2312 Industrial Ethernet Switch

Brand Name : 3onedata

Model Number : IES2312 Series

Certification : CE FCC RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Supply Ability : 3000pcs per month

Delivery Time : 7 Working Days

Packaging Details : Carton

Ports : 12

Poe standard : IEEE802.3af/at,Standards and non-standards

Installation : DIN rail kit and wall mount ear

Power supply : 12~48VDC or 100~240VAC

Warranty : 5 years

Contact Now

12-port Full Gigabit Unmanaged Industrial Ethernet Switch(Optional PoE)

Introduction:

IES2312 series are 12-port full gigabit layer 2 unmanaged industrial PoE/non-PoE Ethernet switches. Their PoE power supply conforms to the protocol standards of IEEE 802.3af/at. This series have 8 types of product, and provide gigabit copper ports, gigabit PoE ports, gigabit fiber pots, gigabit SFP slots and other ports. They support multiple power supply schemes including 100~240VAC, 12~48VDC, 24VDC POE and 48VDC POE, and adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different scenes.
The input DC power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, aerospace, intelligent manufacturing, military project and other industrial fields.

Specification:

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3af for PoE

IEEE 802.3at for PoE+
PoE

The maximum power of POE port: 30W

PoE power supply pin: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface

Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Gigabit fiber port: 1000Base-FX, optional SC/ST/FC interface

SFP slot: 1000Base-SFP, LC

Console port: Reserved

Alarm port: Reserved
LED Indicator

Running Indicator, Alarm Indicator, Port Indicator, Power Supply Indicator, PoE Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 4Mbit

Backplane bandwidth: 24G

Switch time delay: <10μs

Power

Requirement

This series of products provide 4 power supply modes.

The PoE product has two optional power supply schemes:

Scheme 1

Power supply range: 24VDC PoE

Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins)

Power supply quantity: dual power supply redundant backup

Connection protection: anti-reverse connection

Over-current protection: 12A

Scheme 2

Power supply input: 48VDC PoE

Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins)

Power supply quantity: dual power supply redundant backup

Connection protection: anti-reverse connection

Over-current protection: 5A

Non-PoE product has two optional power supply schemes:

Scheme 3

Power supply range: 12~48VDC

Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins)

Power supply quantity: dual power supply redundant backup

Connection protection: non-polarity

Over-current protection: 3A

Scheme 4

Power supply input: 100~240VAC

Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)

Over-current protection: 5A

Environmental

Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95% (no condensation)
Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail or wall mounting

Weight: ≤740g

Dimension (W x H x D): 53mm×138mm×110mm

Industrial

Standard

IEC 61000-4-2 (ESD), Level 3

IEC 61000-4-4 (EFT), Level 3

IEC 61000-4-5 (Surge), Level 3

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
Certification

CE, FCC, RoHS, UL61010
Warranty

5 years

Order Information:

Available Models Gigabit Copper Port Gigabit PoE Port Gigabit Fiber Port Gigabit SFP Slot PoE Power Power Supply
IES2312-8GP4GF-2P24-120W - 8 4 - 120W

24VDC POE

dual power supply
IES2312-8GP4GS-2P24-120W - 8 - 4 120W
IES2312-8GP4GF-2P48-120W - 8 4 - 120W

48VDC POE

dual power supply
IES2312-8GP4GS-2P48-120W - 8 - 4 120W
IES2312-8GP4GF-2P48-240W - 8 4 - 240W

48VDC POE

dual power supply
IES2312-8GP4GS-2P48-240W - 8 - 4 240W
IES2312-8GT4GF-2P48 8 - 4 - -

12~48VDC

dual power supply
IES2312-8GT4GS-2P48 8 - - 4 -
IES2312-8GT4GF-P220 8 - 4 - - 100~240VAC
IES2312-8GT4GS-P220 8 - - 4 -

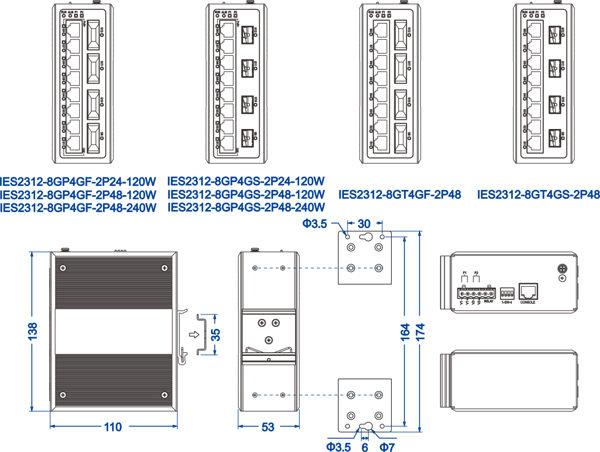

Dimension:

Unit:mm

DC power supply

12 Port Unmanaged PoE IES2312 Industrial Ethernet Switch

AC power supply

12 Port Unmanaged PoE IES2312 Industrial Ethernet Switch
